Specifications
| Attribute | Details |
|---|---|
| Product Name | Rigid Stranding Machine |
| Application | Power Conductors, Copper & Aluminium Conductors |
| Bobbins | 6–127 |
| Bobbin Size | 400–630 mm |
| Wire Diameter | 1.5–5 mm |
| Finished Conductor Size | Up to 120 mm² (larger sizes available) |
| Max Cage Speed | 60–120 RPM |
| Line Speed | Up to 120 m/min |
| Lay Length | Adjustable |
| Capstan | Double Capstan |
| Take-Up Drum | 1600–3150 mm |
| Drive System | Individual AC Vector Motors |
| Tension Control | Electronic / PLC Controlled |
| Control System | PLC + HMI |
| Power Supply | 415V, 50Hz |
Product Description

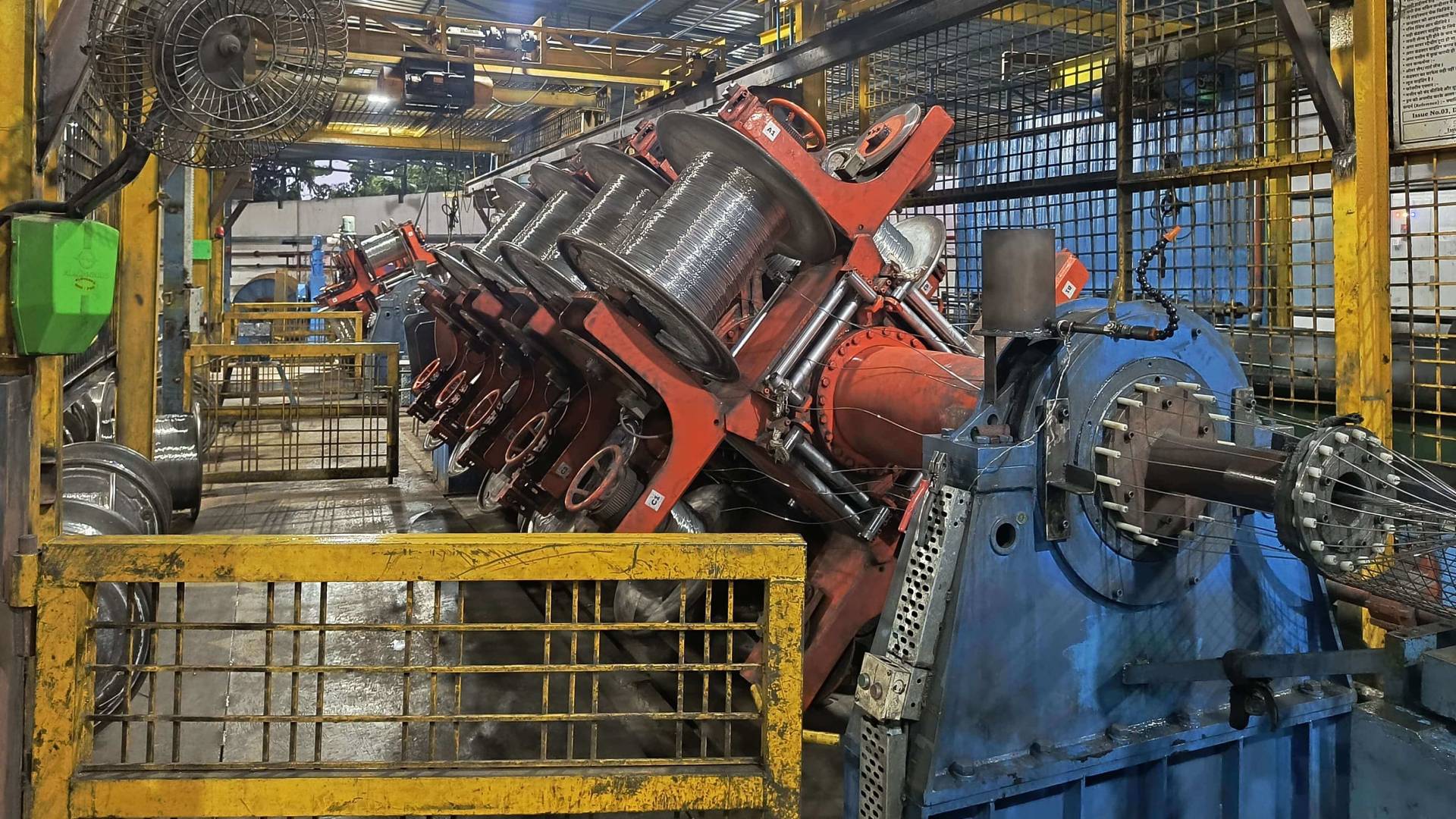

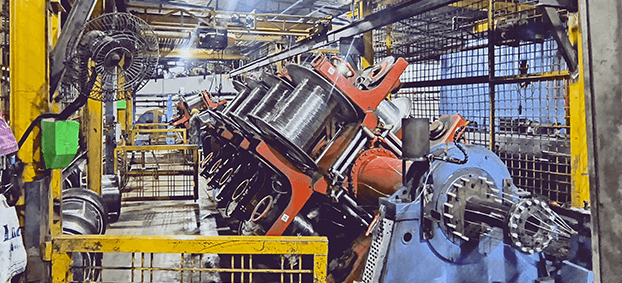

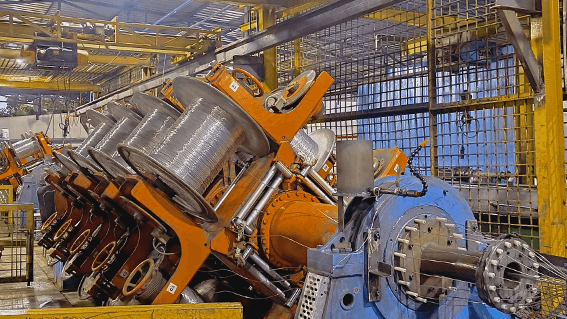

The Rigid Stranding Machine from Alfa Cab Industry is a high-performance cable stranding machine engineered for manufacturing high-quality stranded conductors used in power, control, and industrial cables. Designed for precision and durability, it strands multiple copper or aluminium wires into compact, round, or sector-shaped conductors with consistent lay length and superior strand quality. Featuring robust construction, PLC-based controls, and advanced tension management, this wire stranding machine ensures smooth operation, high productivity, and reduced maintenance.
As a trusted wire stranding machine manufacturer in India, Alfa Cab Industry delivers customized solutions that meet the demanding requirements of modern cable manufacturing machine applications.
Key Features
- High-speed precision stranding for copper, aluminium, and alloy conductors.
- PLC-based automation with optional automatic bobbin loading and handling.
- Produces round, compact, sector-shaped, and pre-spiralled conductors.
- Electronic tension control ensures uniform strand quality and reduced wire stress.
- Heavy-duty modular design for reliable, continuous, and low-maintenance operation.
Applications
- Manufacturing power cable conductors.
- Producing control and instrumentation cable conductors.
- Stranding copper and aluminium conductors for electrical cables.
- Screening and armouring conductor preparation.
- Cable manufacturing plants require high-volume conductor production.
