Specifications
| Attribute | Details |
|---|---|
| Product Name | High Speed Tubular Strander |
| Application | Copper, Aluminium & Steel Wire Stranding |
| Bobbins | 6–61 |
| Bobbin Size | 400–630 mm |
| Wire Diameter | 0.15–3.0 mm |
| Finished Conductor Diameter | Up to 30 mm |
| Tube Speed | Up to 800 RPM |
| Line Speed | Up to 200 m/min |
| Lay Length | Adjustable |
| Bearing Type | Heavy Duty Precision Bearings |
| Drive | AC Vector Drive |
| Take-Up Size | 630–1600 mm |
| Control System | PLC + HMI |
Product Description

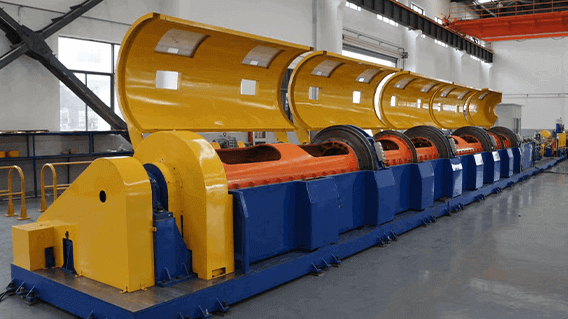

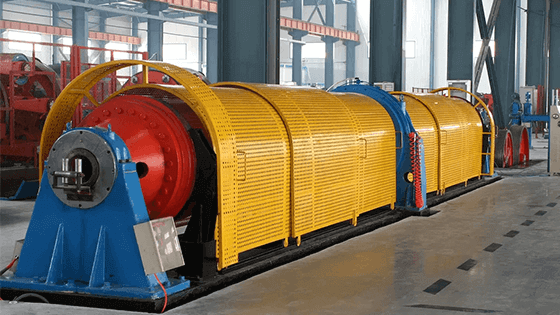

The High Speed Tubular Strander from Alfa Cab Industry is a high-performance tubular strander machine designed for precision cable stranding of copper, aluminium, and alloy wires. Engineered for modern cable manufacturing machines, it produces concentric, round, and compact stranded conductors with exceptional accuracy and uniform lay lengths. Its rigid tubular design minimizes vibration, supports high-speed operation, and ensures stable performance for continuous production.
Featuring advanced tension control, automation options, and robust construction, this wire tubular strander delivers superior strand quality, increased productivity, reduced maintenance, and reliable operation for power, control, communication, and overhead conductor manufacturing.
Key Features
-
High-speed tubular strander design for accurate and efficient conductor stranding.
-
Rigid tubular frame minimizes vibration and ensures smooth high-RPM operation.
-
Advanced electronic tension control for uniform lay length and strand quality.
-
Compatible with multiple bobbin sizes and customizable machine configurations.
-
Heavy-duty construction with low-maintenance design for continuous industrial production.
Applications
-
Manufacturing power cable conductors.
-
Producing control and instrumentation cable conductors.
-
Manufacturing communication and telecom cables.
-
Stranding overhead transmission conductors.
-
High-speed wire and cable manufacturing plants.
