Specifications
| Attribute | Details |
|---|---|
| Product Name | Pay-Off & Take-Up Units |
| Applications | Wire Drawing, Stranding, Extrusion, Armouring, Rewinding |
| Bobbin Size | 400–3150 mm |
| Drum Weight Capacity | 500 kg–30 Ton |
| Line Speed | Up to 800 m/min |
| Drive | AC Vector Drive / Servo |
| Motor Power | 2.2–45 kW |
| Traversing | Automatic PLC Controlled |
| Tension Control | Mechanical / Pneumatic / Electronic |
| Braking System | Pneumatic Disc Brake |
| Lift Type | Hydraulic |
| Shaft Type | Pintle / Shaftless |
| Control | PLC + HMI |
| Power Supply | 415V, 50Hz |
Product Description

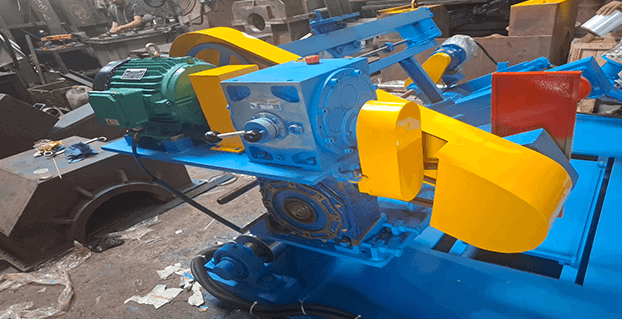

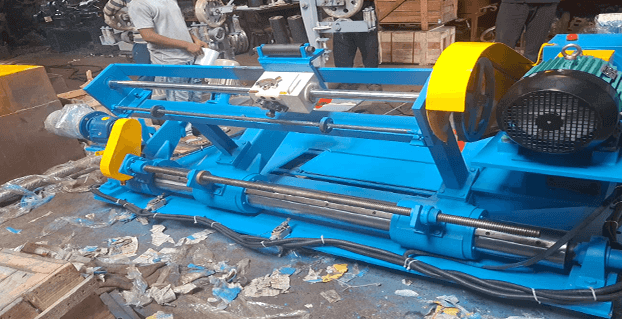

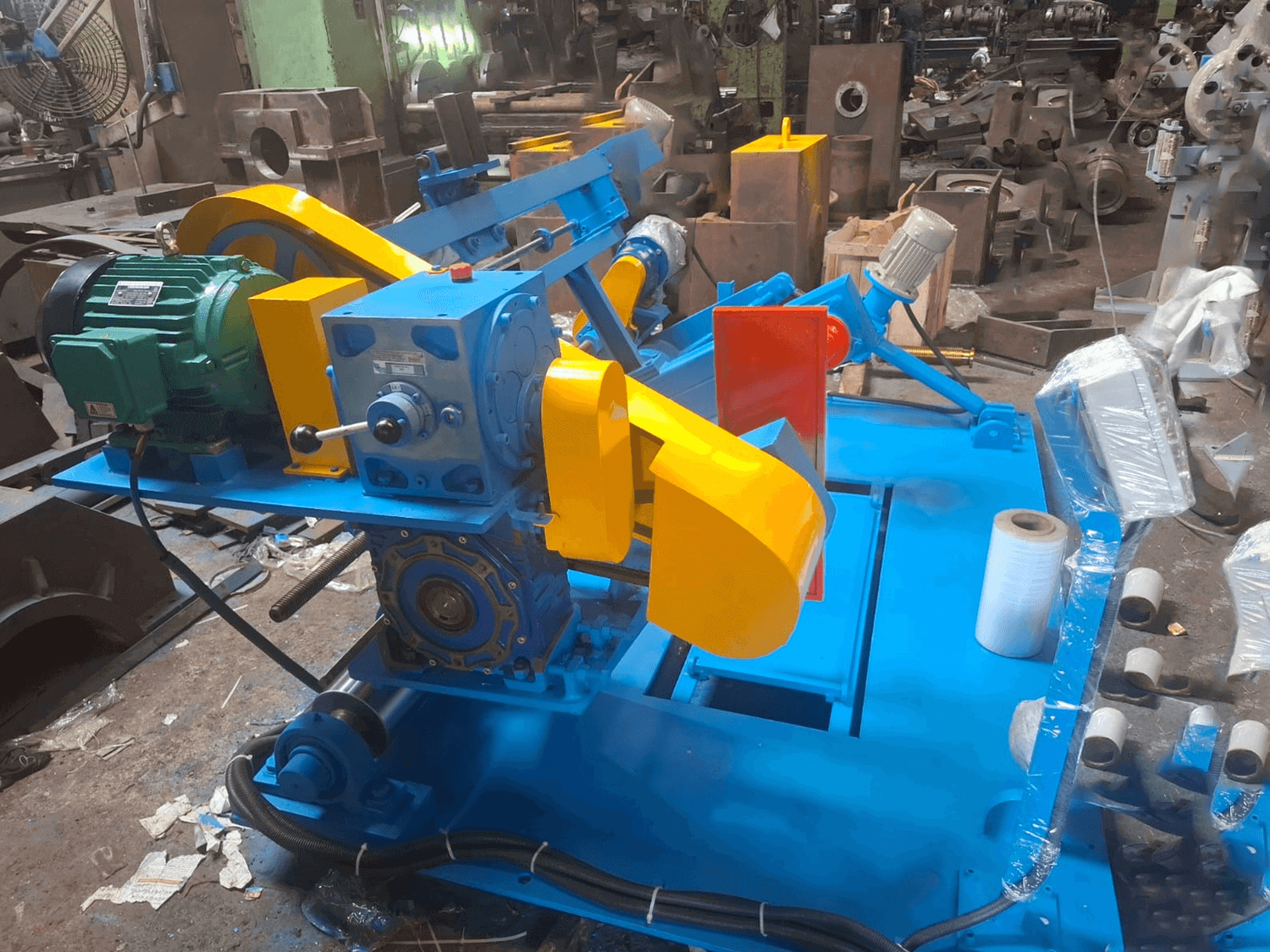

The Pay-Off & Take-Up Unit from Alfa Cab Industry is a precision-engineered wire take up machine designed for smooth cable feeding, winding, and tension control throughout the cable manufacturing machine process. Suitable for integration with wire drawing machines, cable stranding machines, armouring machines, and extrusion lines, it ensures vibration-free operation, accurate cable handling, and consistent spool winding. Available as cable drum take up machines, motorized, hydraulic, or manual systems, these units accommodate a wide range of reel sizes and load capacities. With advanced tension control and heavy-duty construction, they improve production efficiency, minimize cable damage, and ensure reliable performance in high-speed wire and cable manufacturing.
Key Features
-
Precision wire take up machine for smooth cable feeding and winding.
-
Advanced dancer arm or electronic tension control for consistent cable handling.
-
Supports multiple drum and reel sizes with high load capacities.
-
Available in manual, motorized, and hydraulic configurations.
-
Heavy-duty, vibration-free design for continuous industrial operation.
Applications
-
Cable feeding and winding in wire drawing lines.
-
Pay-off and take-up for cable stranding operations.
-
Cable handling in armouring and extrusion lines.
-
High-speed wire and cable manufacturing plants.
-
Industrial cable and conductor production facilities.
