Specifications
| Attribute | Details |
|---|---|
| Product Name | Bull Nose Strander |
| Application | AAC, AAAC & ACSR Conductors |
| Bobbins | 6–54 |
| Bobbin Size | 500–630 mm |
| Wire Diameter | 1.5–5.0 mm |
| Finished Conductor Diameter | Up to 45 mm |
| Maximum Speed | Up to 300 RPM |
| Line Speed | Up to 120 m/min |
| Lay Length | Adjustable |
| Capstan | Double Capstan |
| Drive | AC Vector Drive |
| Take-Up Drum | 1600–3150 mm |
| PLC Control | Yes |
Product Description

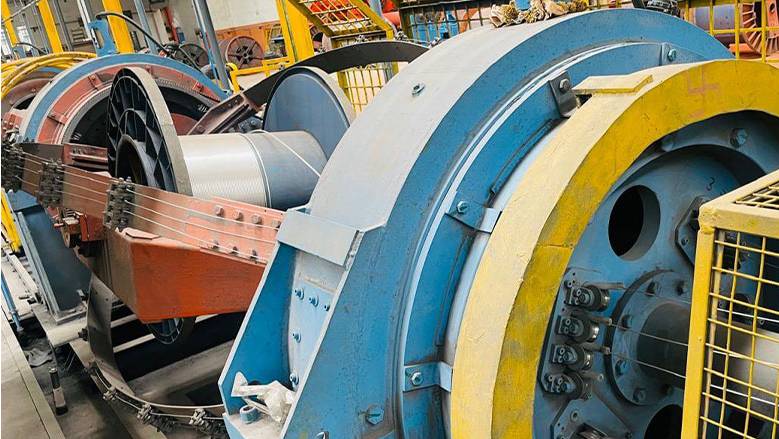

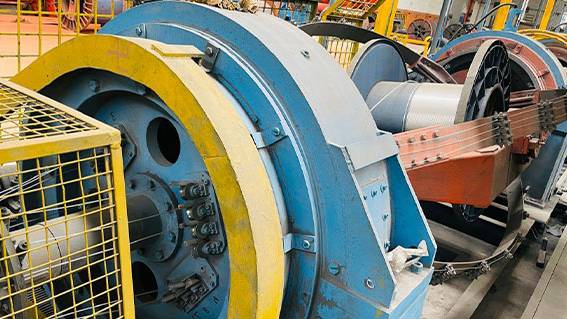

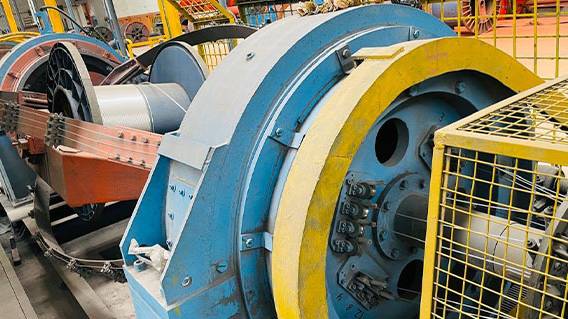

The Bull Nose Strander from Alfa Cab Industry is a specialized bull nose stranding machine engineered for manufacturing Optical Ground Wire (OPGW), Aluminium Clad Steel (ACS), and other high-strength composite conductors. Designed for advanced cable manufacturing machines, it delivers precise multi-layer stranding with excellent conductor alignment and controlled wire tension. Its unique tubular and bow skip structure ensures stable rotation, reduced stress on optical fiber tubes, and consistent strand quality.
Built for demanding transmission and telecom applications, this bull nose strander offers reliable performance, high productivity, and exceptional accuracy for complex cable constructions.
Key Features
-
Precision bull nose stranding machine for OPGW and composite conductor manufacturing.
-
Tubular and bow skip design for stable, synchronized multi-layer stranding.
-
The controlled tension system protects optical fiber tubes and delicate cable components.
-
Ideal for Aluminium Clad Steel (ACS) and other high-strength conductor applications.
-
Heavy-duty, low-maintenance construction for continuous industrial production.
Applications
-
Manufacturing Optical Ground Wire (OPGW) cables.
-
Producing Aluminium Clad Steel (ACS) conductors.
-
Manufacturing composite and hybrid conductors.
-
Telecom and power transmission cable production.
-
High-strength specialty cable manufacturing.
