Service Information
- Service Name:Planetary Stranding Machine
- Category:Cable Armouring & Stranding
- Configuration:1+3 to 1+48 bobbin.
- Bobbin Size Range:400mm to 630mm
- Max Speed:100 RPM
Precision Armouring & Stranding for Complex Cable Lines

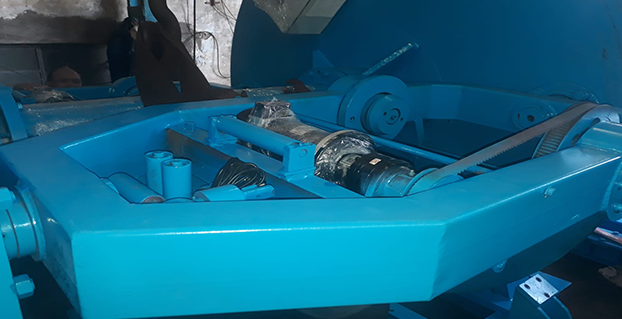

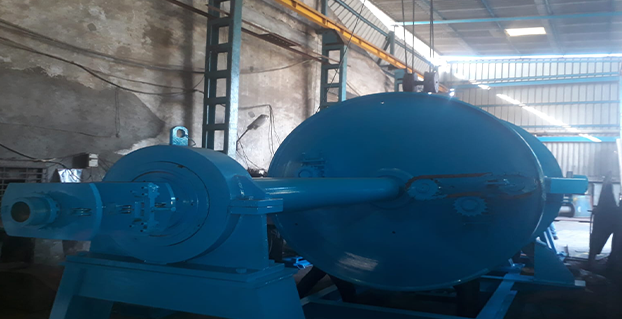

AlfaCab’s Planetary Stranding Machine is engineered for multi-purpose Cable & Conductor Manufacturing operations, including armouring, screening, conductor stranding, and laying-up. Built to standards, it delivers smooth and synchronized rotation with total back twist control — achieved via advanced gear meshing technology. Whether you're producing energy cables, OPGW, or optic fiber reinforced lines, this machine adapts to high-volume and high-complexity manufacturing environments with modular cage configurations and robust mechanical systems.
Reliable Solution for High-Performance Cable Production
The Planetary Strander is widely used in power, telecommunication, and specialty Cable & Conductor Manufacturing due to its high flexibility, large bobbin support (150 mm to 3000 mm), and configurability up to 128 wires. Designed for stable performance even at 250 RPM, it is ideal for both standard and high-strength cable constructions. With back twist control, precise tension balancing, and rugged frame alignment, this machine ensures consistent quality even under long-duration, high-speed operation.
Key Features
- Multi-Function Operation : Performs stranding, armouring, and laying-up — all in one setup.
- Back Twist Control System : Advanced gear meshing ensures precise twist management during high-speed runs.
- Large Bobbin Compatibility : Supports bobbins from 400 mm to 630mm for various cable sizes.
- Flexible Configurations : Available from 1+3 to 1+48 setup; expandable for up to 128 wires per line.
